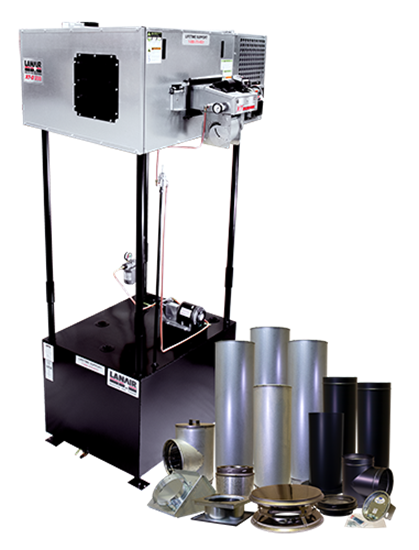

81012024- XTD200 Waste Oil Heater Value Package 4
Heater with 215 gallon tank and 6" wall kit
Our XTD200 Waste Oil Heater Value Package 4 includes a 215-gallon tank and a comprehensive 6" wall chimney kit with the ability to be ducted to heat separated spaces. It delivers up to 200,000 BTUH, heating areas up to 5,000 sq. ft. The chimney kit is designed for ease of installation and includes a chimney cap, a 24" Class A chimney pipe, a storm collar, and a roof flashing compatible with roof pitches from 0/12 to 6/12. Additionally, the kit features a 36" Class A chimney pipe, a finishing collar, a 14" slip connector, four 24" black pipes, a black tee pipe with cap, a roof support bracket, and a 90° elbow.
Please allow 5-7 business days for processing.
$10,080.99
81012024- XTD200 Waste Oil Heater Value Package 4
1
Finance for as low as
Click Here

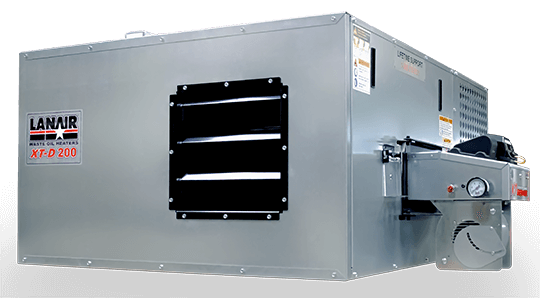

The XT-200 Waste Oil Heater now burns 100% used synthetic oil along with other used fluids. It comes standard with an easy access hinged chamber door for easy clean out. It also features a large clean-out side access panel to the collector box. Some of the new improvements made to the XT models are: easy to remove burner, a noncontinuous spark transformer, an hour meter, and a prime switch. All of these features make it easy for those who compare...buy Lanair!
81012024- XTD200 Waste Oil Heater Value Package 4
Products specifications
|
Heat Range (BTUH)*
|
200,000
|
|
Fuel Input (GPH)
|
1.44
|
| Fuel Type† |
Waste oil (used crankcase oil up to 50 wt), used synthetic oil, used #1 and #2 fuel oil, used C.C. synthetic ATF #1 and #2, used automatic transmission fluid |
|
Fuel Type
|
Used crankcase oil up to 50 wt (conventional or synthetic), used automatic transmission fluid, #1 and #2 fuel oil (diesel)
|
|
Heating Area (sq. ft)**
|
5,000
|
|
Power Supply (AC)
|
120 V.6OHz 20 Amps
|
|
Cabinet Dimensions (H-W-D)
|
24" x 40.5" x 56"
|
|
Hanging weight (lbs.)
|
523
|
|
Chimney Pipe***
|
6" Class A
|
|
Compressed Air****
|
2 CFM - 12 - 15 PSI
|
|
Combustion Chamber
|
12 Gauge CRS
|
|
Ductable Option
|
Yes
|
|
Chimney Location
|
Top and Left Side
|
