XT Series Heaters

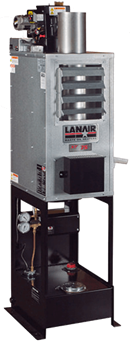

Fits into tight corners without cutting any! The XT-75 heater comes with 75,000 BTUs and heats up to 1,700 sq. ft. Designed to burn #2 fuel oil, used crankcase oil (up to 50wt), and used ATF. Includes small 21”W x 26”L floor-mounted footprint, onboard air compressor, metering pump, draft gauge, and a cleanable in-tank strainer. Includes a 6” chimney for roof (for wall installation, please call us). Ideal for small shops and DIY garages.

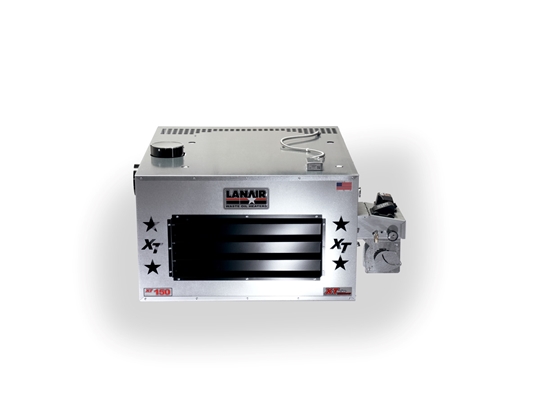

The XT-150 heater burns 100% used synthetic oil and comes with an easy access hinged chamber door for simple clean out. Heat ranges up to 150,000 BTUH and 3,500 sq. ft. It burns used crankcase oil (up to 50 wt), used automatic transmission fluid, and both #1 and #2 diesel fuel. Features a 12-gauge combustion chamber and a 2,600 CFM axial fan for optimal airflow. Its 48" x 40" x 24" cabinet houses the heater's components with a hanging weight of 453 lbs.

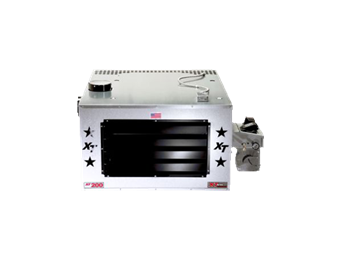

With up to 200,000 BTUH, the XT200 heats areas up to 5,000 sq. ft. and burns 100% used synthetic oil, along with other used fluids and diesel. This unit features a 48" x 40" x 24" cabinet, a 2,600 CFM axial fan, and a 6" Class A chimney pipe. It includes an easy-access hinged chamber door, a large side-access clean-out panel, a removable burner, a non-continuous spark transformer, an hour meter, and a prime switch.

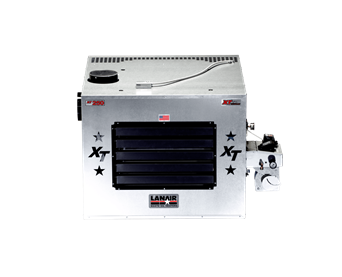

The XT-250 heater has a powerful heat output up to 250,000 BTUH and 8,500 sq. ft., burning 100% used synthetic oil and other fluids. It features a 47" x 46" x 36" cabinet, a 4,600 CFM axial fan, and an 8" Class A chimney pipe. It operates on a 120 V-60Hz 20 Amp power supply and includes a 2 CFM compressed air system. It boasts an easy-access hinged chamber door and a large side-access clean-out panel.

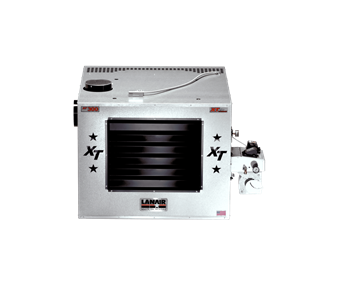

With a powerful heat range up to 300,000 BTUH, the XT300 can heat areas up to 10,000 sq. ft. and burns 100% used synthetic oil, along with other used fluids and diesel. This unit features a 47" x 46" x 36" cabinet, a 4,600 CFM axial fan, and an 8" Class A chimney pipe. It operates on a 120 V-60Hz 20 Amp and includes a 2 CFM compressed air system. Enhanced with an easy-to-remove burner, a non-continuous spark transformer, an hour meter, and a prime switch.
