Use our simple Package Builder tool to find the waste oil heater kit that's right for you.
Take control of your heating cost with a waste oil fired heater package from Lanair.
Our heaters not only eliminate the cost to haul used oil off-site, but they can reduce your heating bills too. In addition, burning waste oil is an environmentally friendly way to dispose of waste oil.
Complete package is designed for commercial use.
SELECT THE APPROXIMATE SIZE OF THE AREA THAT WILL BE HEATED.
XT-150
MODEL SPECIFIC DETAILS AT A GLANCE
HEAT RANGE (BTU):
to 150,000
AXIAL FAN (CFM):
to 2,600
CHIMNEY LOCATION:
Top/Left
WOULD YOU LIKE YOUR CHIMNEY TO EXIT THRU THE WALL OR ROOF?
ROOF CHIMNEY KIT
Use this option when you want to vent through the roof of a building.
Designed specifically for use with Lanair, these Chimney Kits ensure you have the safest, most efficient materials possible.
Easy Install Class A Chimney Kit
- No locking bands required
- No fasteners required
- Convenient adjustable slip connector
- Flexible install options
- Helps meet required clearances
- Insulation encased safely via dual walls
WHAT SIZE TANK DO YOU NEED? DO YOU NEED IT TO FUNCTION LIKE A HEATER STAND?
80 GALLON WASTE OIL TANK
The 80 gallon tank is ideal for ceiling hung installations or where conserving floor space is a high priority.
Commonly called the "Baby Tank", Lanair's 80 Gallon Waste Oil tank offers a compact installation and a built in strainer pan for easy pouring.
80 GALLON TANK
- Small Footprint
- Stores 80 Gallons of Waste Oil
- Includes Copper Fuel Line
- Built-in Strainer Pan
- Ideal for Ceiling Hung Installations
* Cannot be used as a Heater Stand
BASED ON THE OPTIONS YOU CHOSE, WE WOULD RECOMMEND...
PACKAGE 1

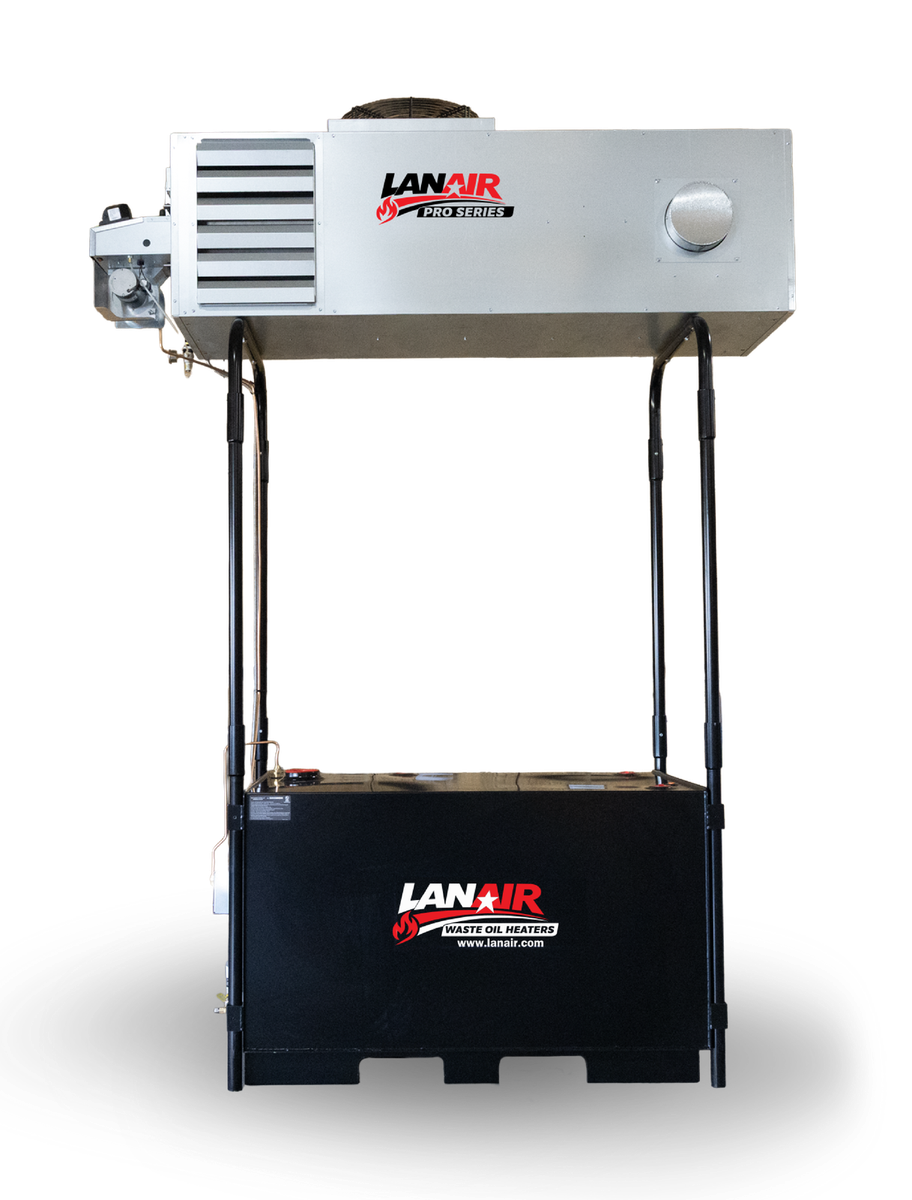

LANAIR XT-150 WASTE OIL HEATER UNIT
- Heat Range (BTUH): to 150,000
- Heating Area (sq. ft): to 3,500
- Power Supply (AC): 120 V.6OHz 20 Amps
- Unit Dimensions (H-W-D): 24"x40.25"x48"
- Hanging weight (lbs.): 413
- Chimney Location: Top/Left Side
- Compressed Air*: 2 CFM - 15 PSI
6" Thru-Roof Class A Chimney Kit (16' eave)
- 1 chimney cap
- 1 24" Class A chimney pipe
- 1 storm collar
- 1 roof flashing 0/12-6/12
- 1 36" Class A chimney pipe
- 1 finishing collar
- 1 14" slip connector
- 4 24" black pipe
- 1 black tee pipe w/cap
- 1 roof support bracket
- 1 90° elbow (MX 250/300 only)
LANAIR 80 GALLON "BABY TANK"
- Stores up to 80 gallons of Waste Oil
- Includes copper fuel line
- Built-in strainer pan
- Compatable with Lanair heater accessory kit
- Tank Dimensions (H-W-D): 35" x 22" x 35"
