81013024- XTD300 Waste Oil Heater Value Package 4
Heater with 215 gallon tank and 8" wall kit

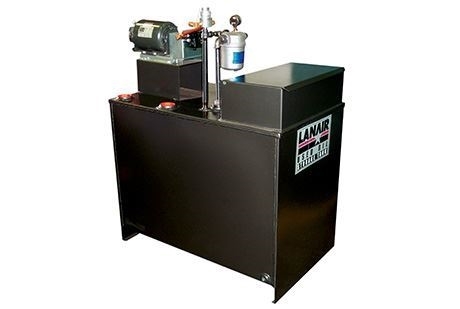

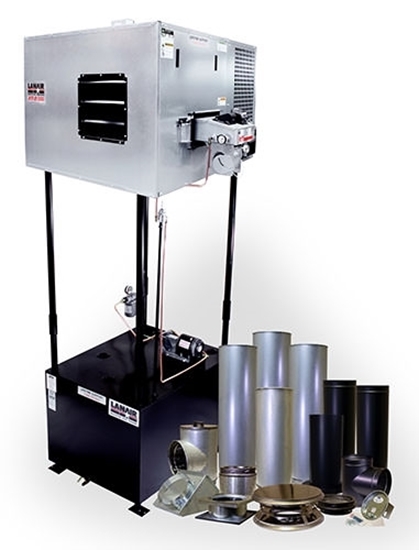

The XTD300 Waste Oil Heater Value Package 4 has a powerful heater with a 215-gallon tank, an 8” wall chimney kit, and the ability to be ducted to heat separated spaces. This package provides a heat range of 300,000 BTUH, suitable for heating areas up to 10,000 sq. ft. The chimney kit comprises a chimney cap, a 24" Class A chimney pipe, a storm collar, roof flashing for slopes between 0/12 and 6/12, a 36" Class A chimney pipe, a finishing collar, a 14" slip connector, four 24" black pipes, a black tee pipe with a cap, a roof support bracket, and a 90° elbow.
Please allow 5-7 business days for processing.
$13,391.99
81013024- XTD300 Waste Oil Heater Value Package 4
1
Finance for as low as
Click Here
Factor in unstable fuel prices and escalating disposal costs and you'll see why purchasing a Lanair XT-D Series GHeater is indeed "The Right Choice at the Right Time!"

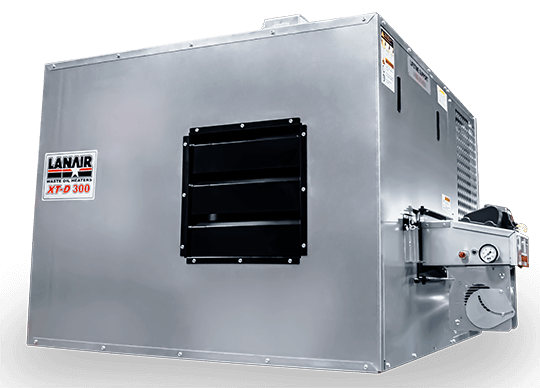

The XT-D 300 Waste Oil Heater now burns 100% used synthetic oil and comes standard with an east access hinged chamber door for easy clean out. It also features a large clean0out side-access panel to the collector box. Some of the new improvements made to the XT-D models are: easy to remove burner, a noncontinuous spark thransformer, an hour meter, and a prime sqitch. All of these features make it easy for those who compate...buy Lanair!
81013024- XTD300 Waste Oil Heater Value Package 4
Products specifications
|
Heat Range (BTUH)*
|
300,000
|
|
Fuel Input (GPH)
|
2.14
|
| Fuel Type† |
Waste oil (used crankcase oil up to 50 wt), used synthetic oil, used #1 and #2 fuel oil, used C.C. synthetic ATF #1 and #2, used automatic transmission fluid |
|
Fuel Type
|
Used crankcase oil up to 50 wt (conventional or synthetic), used automatic transmission fluid, #1 and #2 fuel oil (diesel)
|
|
Heating Area (sq. ft)**
|
10,000
|
|
Power Supply (AC)
|
120 V.6OHz 20 Amps
|
|
Cabinet Dimensions (H-W-D)
|
36" x 45.5" x 54"
|
|
Hanging weight (lbs.)
|
696
|
|
Chimney Pipe***
|
8" Class A
|
|
Compressed Air****
|
2 CFM - 15 - 18 PSI
|
|
Combustion Chamber
|
10 Gauge CRS
|
|
Ductable Option
|
Yes
|
|
Chimney Location
|
Top and Left Side
|
