Use our simple Package Builder tool to find the waste oil heater kit that's right for you.

Take control of your heating cost with a waste oil fired heater package from Lanair. Our heaters not only eliminate the cost to haul used oil off-site, but they can reduce your heating bills too. In addition, burning waste oil is an environmentally friendly way to dispose of waste oil. Complete package is designed for commercial use.

SELECT THE APPROXIMATE SIZE OF THE AREA THAT WILL BE HEATED.
NON DUCTABLE OPTIONS
DUCTABLE OPTIONS
XT-150
MODEL SPECIFIC DETAILS AT A GLANCE
HEAT RANGE (BTU):
to 150,000
HEATS UP TO:
3,500 sq ft
AXIAL FAN (CFM):
to 2,600
CHIMNEY LOCATION:
Top/Left
FUEL INPUT (GPH):
1.07
XT-200
MODEL SPECIFIC DETAILS AT A GLANCE
HEAT RANGE (BTU):
to 200,000
HEATS UP TO:
5,000 sq ft
AXIAL FAN (CFM):
to 2,600
CHIMNEY LOCATION:
Top/Left
FUEL INPUT (GPH):
1.44
XT-250
MODEL SPECIFIC DETAILS AT A GLANCE
HEAT RANGE (BTU):
to 250,000
HEATS UP TO:
8,500 sq ft
AXIAL FAN (CFM):
to 4,600
CHIMNEY LOCATION:
Top
FUEL INPUT (GPH):
1.79
XT-300
MODEL SPECIFIC DETAILS AT A GLANCE
HEAT RANGE (BTU):
to 300,000
HEATS UP TO:
10,000 sq ft
AXIAL FAN (CFM):
to 4,600
CHIMNEY LOCATION:
Top
FUEL INPUT (GPH):
2.14
XTD-200
MODEL SPECIFIC DETAILS AT A GLANCE
HEAT RANGE (BTU):
to 200,000
HEATS UP TO:
5,000 sq ft
BLOWER (CFM):
to 1,550
CHIMNEY LOCATION:
Top/Left
FUEL INPUT (GPH):
1.44
XTD-300
MODEL SPECIFIC DETAILS AT A GLANCE
HEAT RANGE (BTU):
to 300,000
HEATS UP TO:
10,000 sq ft
BLOWER (CFM):
to 1,696
CHIMNEY LOCATION:
Top
FUEL INPUT (GPH):
2.08
WOULD YOU LIKE YOUR CHIMNEY TO EXIT THRU THE WALL OR ROOF?
SELECT A KIT
HEATER-ONLY SELECTED!

If you wish to build a value package, select which Chimney Kit and Tank you will need.

Otherwise, scroll down to the "Recommended Package Area".

ROOF CHIMNEY KIT

Use this option when you want to vent through the roof of a building.

Designed specifically for use with Lanair, these Chimney Kits ensure you have the safest, most efficient materials possible.

Easy Install Class A Chimney Kit
  • No locking bands required
  • No fasteners required
  • Convenient adjustable slip connector
  • Flexible install options
  • Helps meet required clearances
  • Insulation encased safely via dual walls

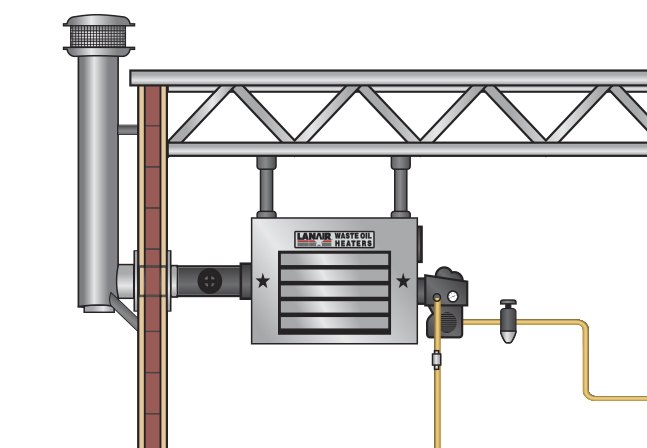

WALL CHIMNEY KIT

Use this option when you want to vent through the wall of a building.

Designed specifically for use with Lanair, these Chimney Kits ensure you have the safest, most efficient materials possible.

Easy Install Class A Chimney Kit
  • No locking bands required
  • No fasteners required
  • Convenient adjustable slip connector
  • Flexible install options
  • Helps meet required clearances
  • Insulation encased safely via dual walls
WHAT SIZE TANK DO YOU NEED? DO YOU NEED IT TO FUNCTION LIKE A HEATER STAND?
SELECT A TANK
HEATER-ONLY SELECTED!

If you wish to build a value package, select which Chimney Kit and Tank you will need.

Otherwise, scroll down to the "Recommended Package Area".

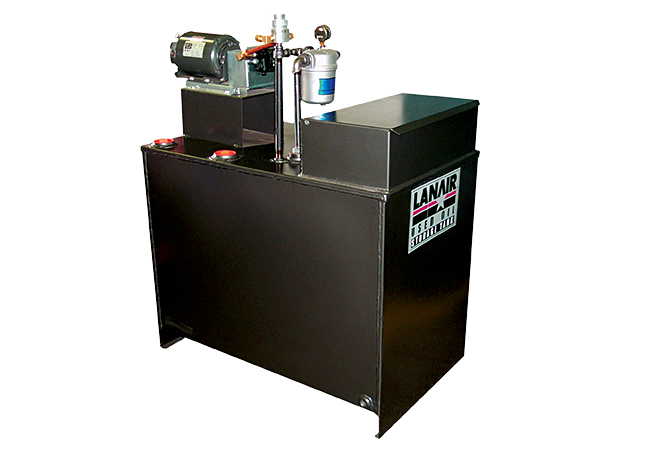

80 GALLON WASTE OIL TANK

The 80 gallon tank is ideal for ceiling hung installations or where conserving floor space is a high priority.

Commonly called the "Baby Tank", Lanair's 80 Gallon Waste Oil tank offers a compact installation and a built in strainer pan for easy pouring.

80 GALLON TANK
  • Small Footprint
  • Stores 80 Gallons of Waste Oil
  • Includes Copper Fuel Line
  • Built-in Strainer Pan
  • Ideal for Ceiling Hung Installations

* Cannot be used as a Heater Stand

215 GALLON WASTE OIL TANK

This is your best option for storing large ammounts of oil and allows heater mounting without the need for a ceiling hung installation.

Expandable design allows flexibility for modular Add-Ons at a later date.

215 GALLON TANK
  • Doubles as a Heater Stand
  • Stores 215 Gallons of Waste Oil
  • Includes Copper Fuel Line
  • Modular Design allows for Add-Ons
  • Ideal for "Self-Standing" Installs

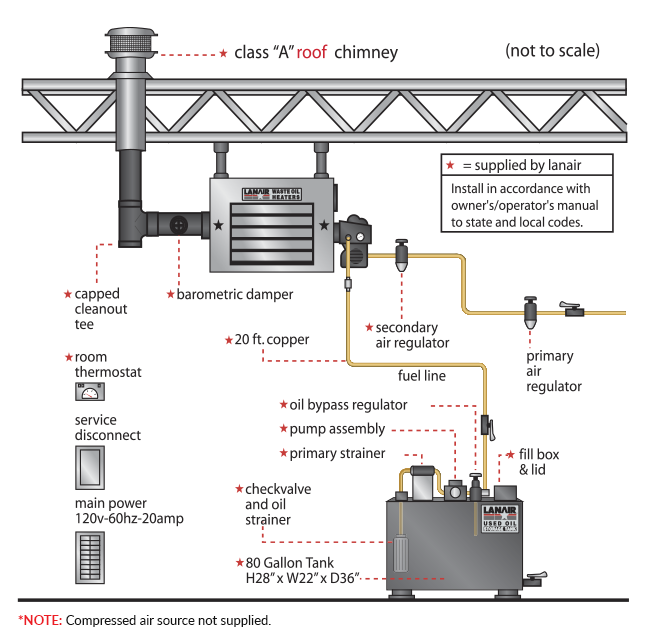

BASED ON THE OPTIONS YOU CHOSE, WE WOULD RECOMMEND...
PACKAGE 1 PACKAGE 2 PACKAGE 3 PACKAGE 4

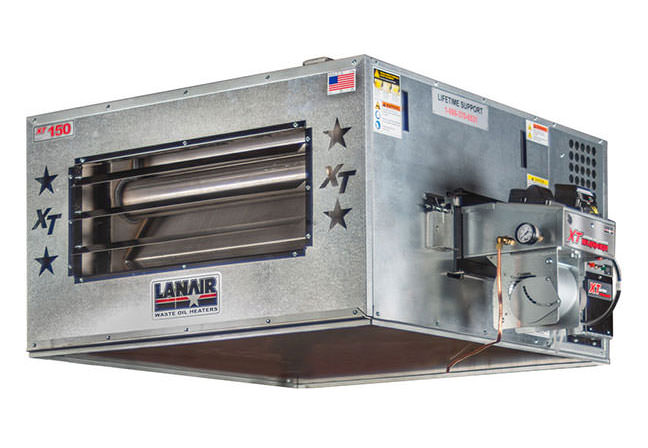

LANAIR XT-150 WASTE OIL HEATER UNIT
  • Heat Range (BTUH): to 150,000
  • Heating Area (sq. ft): to 3,500
  • Power Supply (AC): 120 V.6OHz 20 Amps
  • Unit Dimensions (H-W-D): 24"x40.25"x48"
  • Hanging weight (lbs.): 413
  • Chimney Location: Top/Left Side
  • Compressed Air*: 2 CFM - 15 PSI

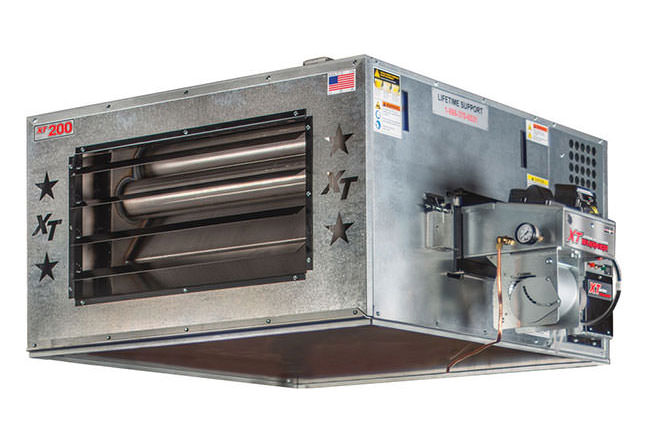

LANAIR XT-200 WASTE OIL HEATER UNIT
  • Heat Range (BTUH): to 200,000
  • Heating Area (sq. ft): to 5,000
  • Power Supply (AC): 120 V.6OHz 20 Amps
  • Unit Dimensions (H-W-D): 24"x40.25"x48"
  • Hanging weight (lbs.): 413
  • Chimney Location: Top/Left Side
  • Compressed Air*: 2 CFM - 15 PSI

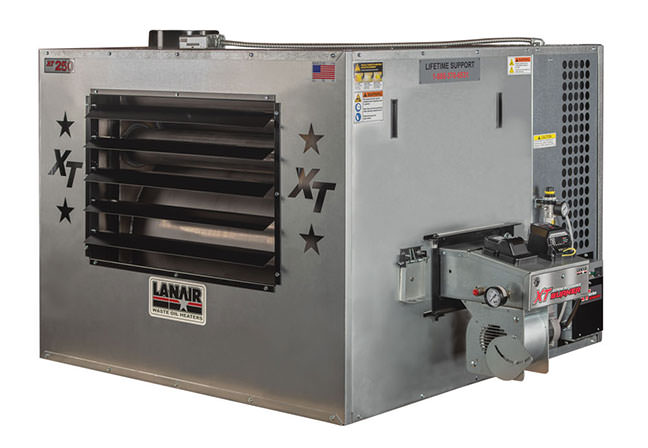

LANAIR XT-250 WASTE OIL HEATER UNIT
  • Heat Range (BTUH): to 250,000
  • Heating Area (sq. ft): to 8,500
  • Power Supply (AC): 120 V.6OHz 20 Amps
  • Unit Dimensions (H-W-D): 36"x46"x48"
  • Hanging weight (lbs.): 630
  • Chimney Location: Top
  • Compressed Air*: 2 CFM - 18 PSI

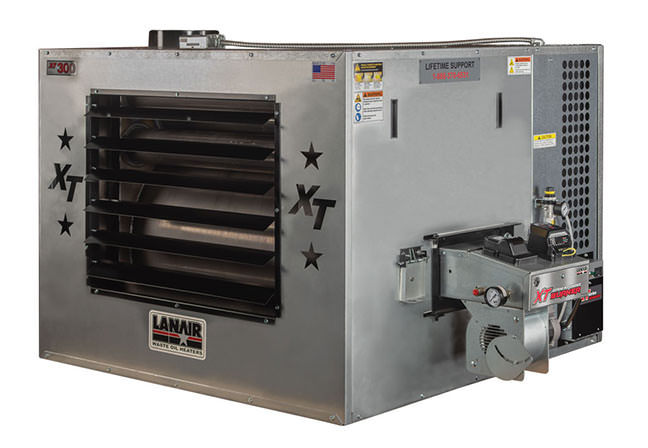

LANAIR XT-300 WASTE OIL HEATER UNIT
  • Heat Range (BTUH): to 300,000
  • Heating Area (sq. ft): to 10,000
  • Power Supply (AC): 120 V.6OHz 20 Amps
  • Unit Dimensions (H-W-D): 36"x46"x48"
  • Hanging weight (lbs.): 630
  • Chimney Location: Top
  • Compressed Air*: 2 CFM - 18 PSI

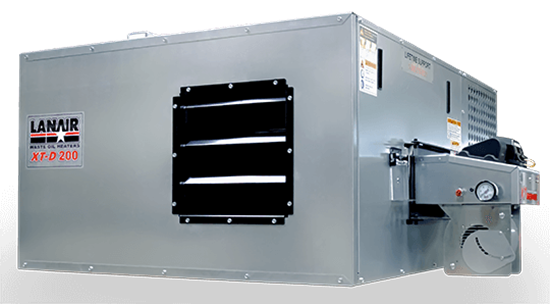

LANAIR XTD-200 WASTE OIL HEATER UNIT
  • Heat Range (BTUH): to 200,000
  • Heating Area (sq. ft): to 5,000
  • Power Supply (AC): 120 V.6OHz 20 Amps
  • Unit Dimensions (H-W-D): 24"x40.5"x56"
  • Hanging weight (lbs.): 460
  • Chimney Location: Top/Left Side
  • Compressed Air*: 2 CFM - 15 PSI

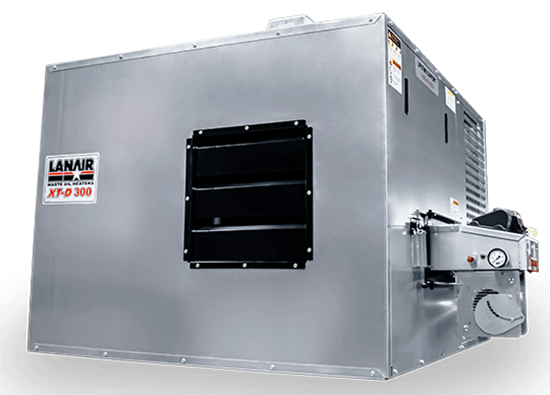

LANAIR XTD-300 WASTE OIL HEATER UNIT
  • Heat Range (BTUH): to 300,000
  • Heating Area (sq. ft): to 10,500
  • Power Supply (AC): 120 V.6OHz 20 Amps
  • Unit Dimensions (H-W-D): 36"x45.5"x54"
  • Hanging weight (lbs.): 650
  • Chimney Location: Top
  • Compressed Air*: 2 CFM - 15 PSI

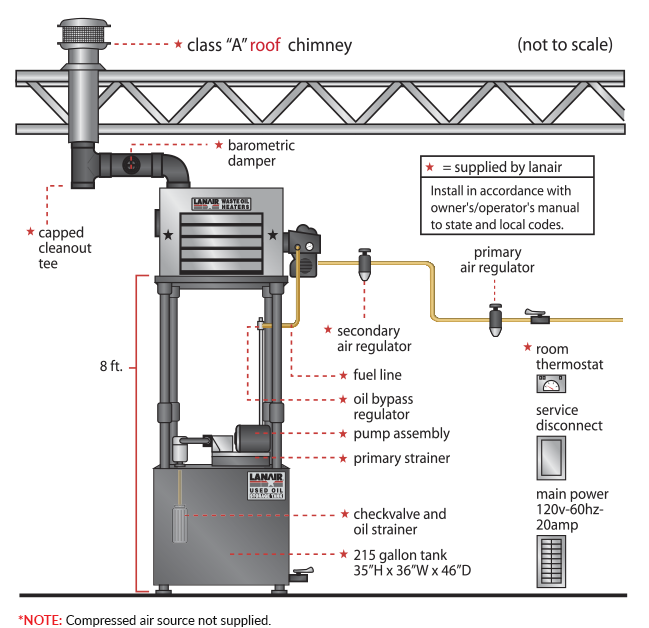

6" Thru-Roof Class A Chimney Kit (16' eave)
8" Thru-Roof Class A Chimney Kit (16' eave)
  • 1 chimney cap
  • 1 24" Class A chimney pipe
  • 1 storm collar
  • 1 roof flashing 0/12-6/12
  • 1 36" Class A chimney pipe
  • 1 finishing collar
  • 1 14" slip connector
  • 4 24" black pipe
  • 1 black tee pipe w/cap
  • 1 roof support bracket
  • 1 90° elbow (MX 250/300 only)

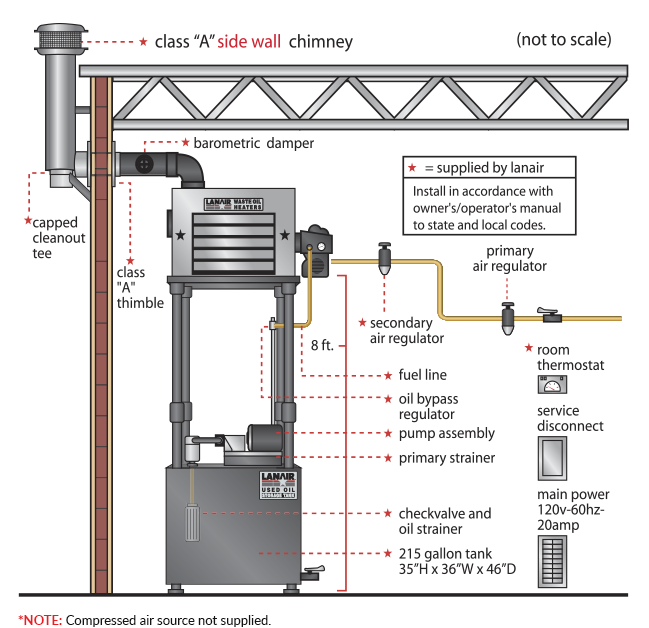

6" Thru-Wall Class A Chimney Kit (16' eave)
8" Thru-Wall Class A Chimney Kit (16' eave)
  • 1 chimney cap
  • 3 36" Class A chimney pipe
  • 1 adjustable wall strap
  • 1 Class A tee with cap
  • 1 6" Class A chimney pipe
  • 1 tee support bracket
  • 1 wall thimble
  • 1 18" Class A chimney pipe
  • 1 finishing collar
  • 1 14" slip connector
  • 2 24" black pipe
  • 1 90° elbow (MX 250/300 only)
LANAIR 80 GALLON "BABY TANK"
  • Stores up to 80 gallons of Waste Oil
  • Includes copper fuel line
  • Built-in strainer pan
  • Compatable with Lanair heater accessory kit
  • Tank Dimensions (H-W-D): 35" x 22" x 35"

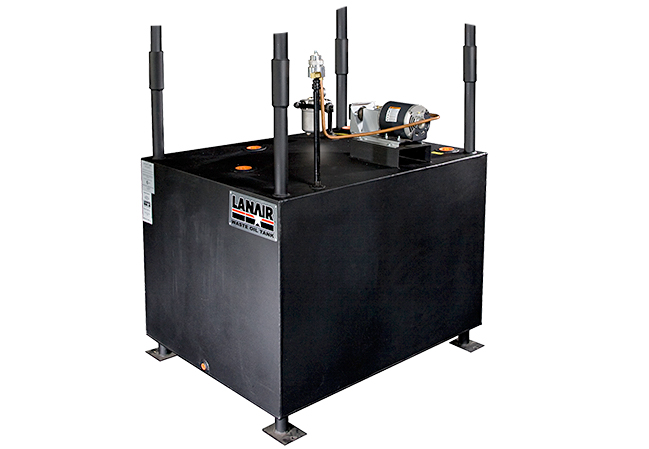

LANAIR 215 GALLON TANK
  • Stores 215 Gallons of Waste Oil
  • Doubles as a Heater Stand
  • Includes Copper Fuel Line
  • Modular Design allows for Add-Ons
  • Tank Dimensions: (H-W-D): 34" x 36" x 46"
  • With Supports: (H-W-D): 96" x 36" x 46"
INCOMPLETE PACKAGE SELECTED!

If you want to build a Laniar Value Package, you must select both your desired Chimney Kit and Tank.

To purchase an individual unit, or to customize a package to fit your needs, please contact a Lanair Sales Representative at (800) 753-1601.
