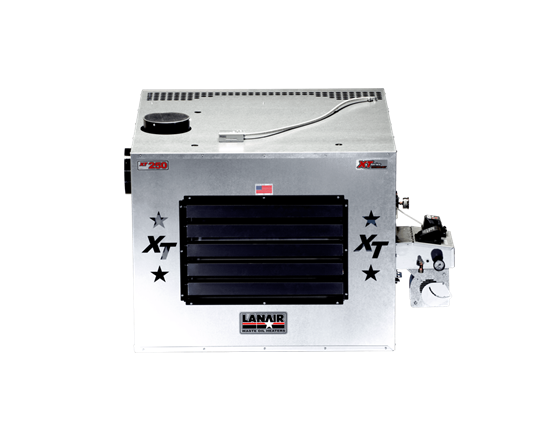

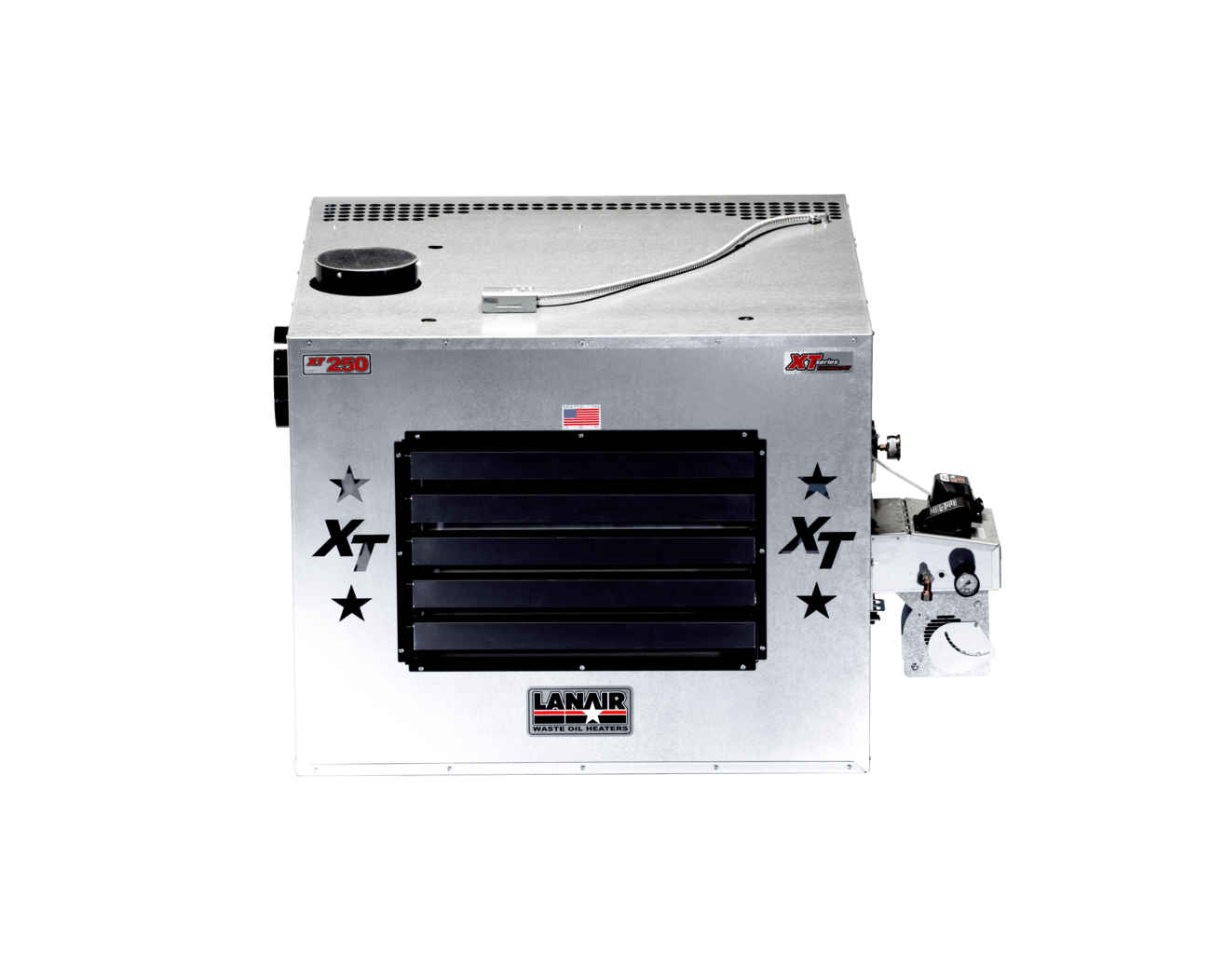

XT250 Waste Oil Heater

The XT-250 heater has a powerful heat output up to 250,000 BTUH and 8,500 sq. ft., burning 100% used synthetic oil and other fluids. It features a 47" x 46" x 36" cabinet, a 4,600 CFM axial fan, and an 8" Class A chimney pipe. It operates on a 120 V-60Hz 20 Amp power supply and includes a 2 CFM compressed air system. It boasts an easy-access hinged chamber door and a large side-access clean-out panel.

Base SKU: 81012505

In Stock: Yes

Weight: 210.00 lbs

Heats up to:8,500 sq. ft.

Up to:250,000 BTU

Fuel Input (GPH):1.79

^$10,133.99

Quantity: Add to Cart

Request Info

Need a Heater That Can Fit Into Tight Quarters Without Cutting Any Corners?

Specifications:

Heat Range (BTUH)*	Up to 250,000
Fuel Input (GPH)	1.8
Fuel Type†	Used crankcase oil up to 50 wt (conventional or synthetic), used automatic transmission fluid, #1 and #2 fuel oil (diesel)
Heating Area (sq. ft.)**	Up to 8,500
Power Supply (AC)***	120 V-60Hz 20 Amps
Cabinet Dimensions (L x W x H)	47" x 46" x 36"
Hanging Weight (lbs.)	670
Axial Fan (CFM)	4,600
Chimney Pipe****	8" Class A
Compressed Air*****	2 CFM – 15-18 PSI
Combustion Chamber	10 Gauge CRS
Ductable Option	No
Chimney Location	Top and Side
