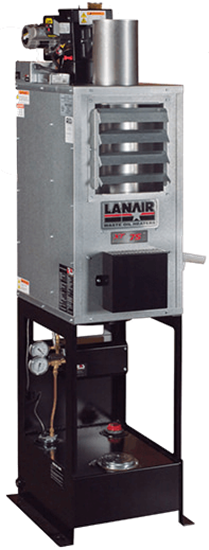

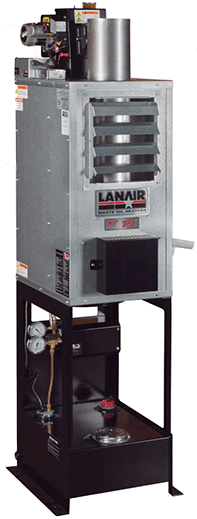

XT75 Waste Oil Heater

Fits into tight corners without cutting any! The XT-75 heater comes with 75,000 BTUs and heats up to 1,700 sq. ft. Designed to burn #2 fuel oil, used crankcase oil (up to 50wt), and used ATF. Includes small 21”W x 26”L floor-mounted footprint, onboard air compressor, metering pump, draft gauge, and a cleanable in-tank strainer. Includes a 6” chimney for roof (for wall installation, please call us). Ideal for small shops and DIY garages.

Base SKU: 81010751

In Stock: Yes

Weight: 210.00 lbs

Heats up to:1,700 sq. ft.

Up to:75,000 BTU

Fuel Input (GPH):0.54

^$3,999.99

Quantity: Add to Cart

Request Info

Need a Heater That Can Fit Into Tight Quarters Without Cutting Any Corners?

75,000 BTU’s heat up to 1,700 sq. ft.
Burns #2 fuel oil (diesel), used crankcase oil (conventional or synthetic), and used ATF
Small footprint; only 21”W X 26”L floor mounted footprint
Onboard air compressor
Metering pump
Draft gauge
Cleanable in-tank strainer
Preassembled for easy installation
Roof and wall includes 6” chimney for 14-16 eves

Specifications:

Heat Range (BTUH)*	Up to 75,000
Fuel Input (GPH)	0.54
Fuel Type†	Burns #2 fuel oil (diesel), used crankcase oil (conventional or synthetic), and used ATF
Heating Area (sq. ft.)**	Up to 1,700
Power Supply (AC)***	115 V-60Hz 8 Amps
Cabinet Dimensions (L x W x H)	26" x 21" x 75"
Hanging Weight (lbs.)	210
Axial Fan (CFM)	500
Chimney Pipe****	6" Class A
Ductable Option	No
Chimney Location	Top
